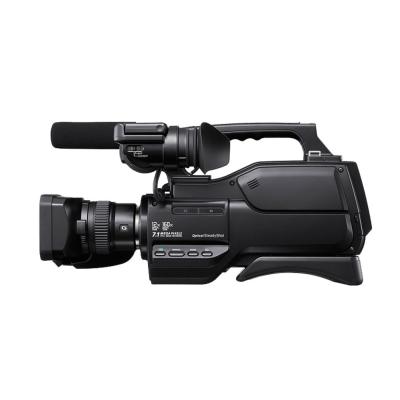

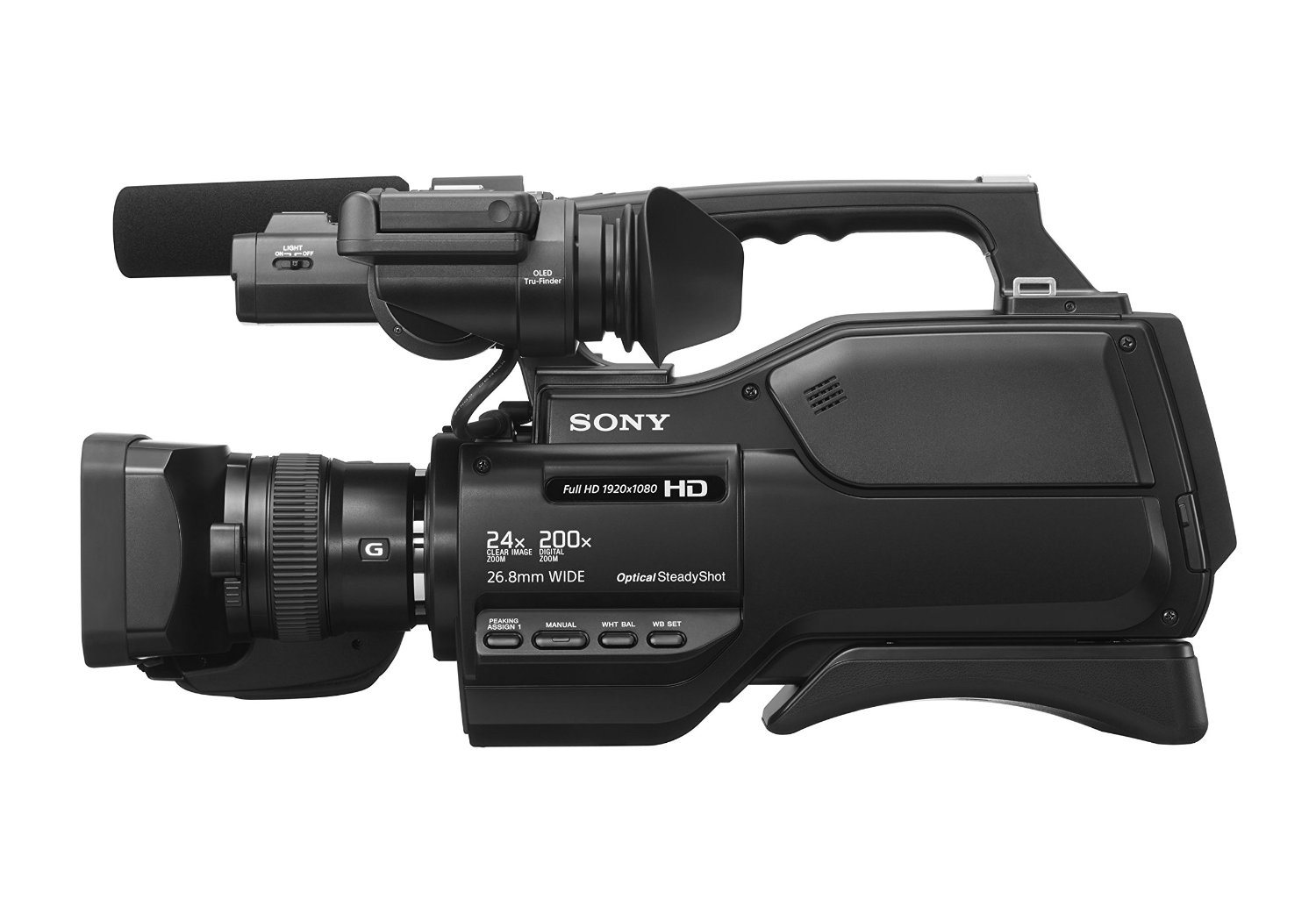

Signal System

1080/60i
NTSC 480/60i

Image Device

1/4″ Exmor R CMOS Sensor (back-illuminated)

Pixels

Total: 6,590,000
Effective: 6,140,000 (16:9); 4,600,000 (4:3)

Minimum Illumination

1.6 lux: MAN setting: SS 1/30 sec, Iris F1.8, Gain 33 dB
0.8 lux: MAN setting: SS 1/15 sec, Iris F1.8, Gain 33 dB

Zoom

Optical: 12x
Clear Image Zoom: 24x
Digital: 200x

Zoom Control

Servo/manual

Focal Length

f= 2.9 to 34.8 mm
35mm Equivalent 16:9: f= 26.8 to 321.6 mm
35mm Equivalent 4:3: f= 32.8 to 393.6 mm

Iris

f/1.8 to F3.4 — auto/manual selectable

Focusing Distance

Wide: 0.4″ / 10 mm to ∞
Telephoto: 31.5″ / 800 mm to ∞

Focus Control

Auto/manual selectable

Image Stabilization

ON (Standard/ACTIVE)/OFF selectable, shift lens

Filter Diameter

37 mm

LCD Monitor

3″ LCD
921,000 dots

Viewfinder

0.39″ OLED
1.44 million dots

Shutter Speed Range

1/8 to 1/10,000 (1/6 to 1/10,000 in 24p mode)

White Balance

Preset: Indoor, Outdoor
Color Temperature Set Range: 2300 to 15000K
One-push A, B, Auto selectable

Gain

0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33 dB — auto selectable

Video Formats

HD: MPEG-4 AVC/H.264 (AVCHD)
SD: DV codec in AVI wrapper

Recording Rate

HD:
PS (28 Mbps) 1920 x 1080: 60p
FX (24 Mbps) 1920 x 1080: 60i, 30p, 24p; 1280 x 720: 60p
FH (17 Mbps) 1920 x 1080: 60i, 30p, 24p, 16:9, 1280 x 720/60p, 16:9
HQ (9 Mbps) 1280 x 720: 60pSD:
DV (25 Mbps) 720 x 480: 60i

Recording Media

Internal: 32 GB
Memory Card Slot: SD/SDHC/SDXC and Memory Stick Pro Duo

Maximum Recording Time

Internal Memory / 32 GB SDHC Card:
PS (LPCM): 145 minutes
FX (LPCM): 170 minutes
FH (LPCM): 225 minutes
HG (LPCM): minutes
DV (LPCM): 140 minutes

Audio Signal Format

HD: Linear PCM 2-channel; 16-bit, 48 kHz / Dolby Digital 2-channel, 16-bit, 48 kHz
SD: Linear PCM 2-channel; 16-bit, 48 kHz

Built-In Microphone

Omni-directional stereo electret condenser microphone

Outputs

1 x HDMI
1 x Composite on BNC female
1 x Analog Audio on 2 x RCA female
1 x Headphone on 3.5 mm mini-jack

USB

1 x USB 2.0 on mini-AB connector — for data transfer to a computer and connecting a USB mass storage device

Remote

1 x LANC on 2.5 mm sub-mini

Accessory Shoe

1 x Multi Interface Shoe
2 x Cold shoe

Luminous Intensity

3.3′ / 1 m: 200 lux
1.6′ / 0.5 m: 800 lux

Lighting Angle

30°

Color Temperature

5,500K

Protocol

IEEE 802.11 b/g/n

Frequency

2.4 GHz

Security

WEP/WPA-PSK/WPA2-PSK

NFC

NFC Forum Type 3 Tag compliant

Power Requirements

Battery Pack: 7.2 VDC
AC Adapter: 8.4 VDC

Power Consumption

3.3 W

Battery Life

Approximately 285 minutes with NP-F570 battery — with video light off
Approximately 135 minutes with NP-F570 battery — with video light on

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Dimensions (WxHxD)

10.4 x 9.3 x 6.1″ / 265 x 235 x 155 mm — body only
2.6 x 9.4 x 18.1″ / 65 x 240 x 460 mm — with lens
hood, lens cap, microphone, and eyecup (excluding the grip belt and including the projecting parts)

Weight

6.2 lb / 2.8 kg (body only)
6.8 lb / 3.1 kg (lens hood, lens cap, microphone, eyecup, shoe cap, and NP-F570 battery)
