Spesification

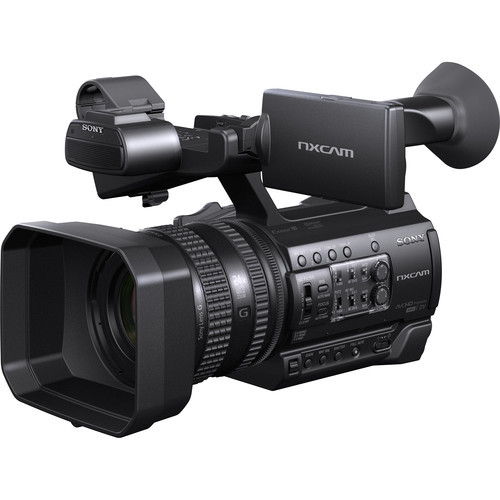

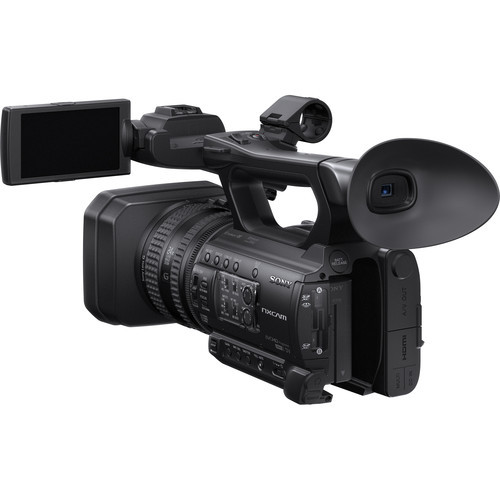

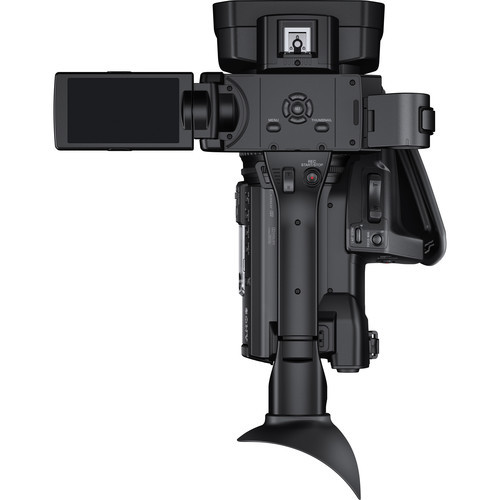

Sony HXR NX100

Imaging

Image Sensor	1-Chip 1″ CMOS Sensor
Effective Sensor Resolution	14.2 MP
Gain	-3 to 33 dB
Minimum Illumination	1.7 Lux at 1/30 Shutter Speed
White Balance Range	2300 to 15,000K

Lens

Focal Length	9.3 to 111.6mm
35mm Equivalent Focal Length	29 to 348mm
Optical Zoom Ratio	12x
Maximum Aperture	f/2.8 to 4.5
Minimum Focusing Distance	Not Specified by Manufacturer
Filter Size	62 mm
Image Stabilization	Optical
Focus Control	Autofocus Manual Focus

Camera

Shutter Speed	1/6 to 1/10,000 sec
Scan Rate Adjustable	No
Built-In ND Filter	Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
Built-In Microphone Type	Stereo

Recording

Recording Modes	XAVC S: 1920 x 1080p at 23.98/29.97/59.94 fps (50 Mb/s) AVCHD: 1920 x 1080p at 23.98/29.97/59.94 fps (17 to 28 Mb/s) 1920 x 1080i at 59.94 fps (24 Mb/s)
Variable Frame Rates	1080i: 1 to 60 fps

Interfaces

Video Connectors	1 x BNC (Composite) Output 1 x HDMI Output
Audio Connectors	1 x 1/8″ / 3.5 mm Stereo Headphone Output 1 x Stereo 2RCA Output 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
Other I/O	1 x 2.5 mm LANC Control 1 x USB Micro-B

Display

Display Type	Articulating LCD
Size	3.5″
Resolution	1,560,000 Dot

EVF

EVF Display Type	LCD
Screen Size	.24″
EVF Resolution	1,560,000 Dots

Power

Battery Type	Sony L-Series
Power Connectors	1 x Barrel Input
Power Consumption	6 W

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C

General

Accessory Mount	1 x Multi-Interface Shoe
Tripod Mount	1/4″-20 Female
Dimensions	6.7 x 7.4 x 14.6″ / 171.3 x 187.8 x 371.2 mm
Weight	4.6 lb / 2.1 kg
Warranty Length	Limited 1-Year Warranty
